| Payment Type: | L/C,T/T,Paypal,Money Gram |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: 6090
Type: Engraving Router
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: CE, ISO, SGS
Customized: Customized
Condition: New
Color: Customized
Working Area: 900*600*150mm
Spindle: 1.5 Kw Water Cooling Spindle
Transmission: X, Y , Z Axis By Ball Screw
Motor: Stepper Motor
Guide: Taiwan Hiwin Linear Rail
Inverter: Fuling
Control System: Mach3/NC-studio/DSP
Driver: Leadshine
Software: Ucancam / ArtCam/TYPE3
Additional Info
Packaging: Plywood caes which are very strong and suitable for shipping
Brand: YIHAI
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 200
Port: QINGDAO,SHANGHAI
Product Description

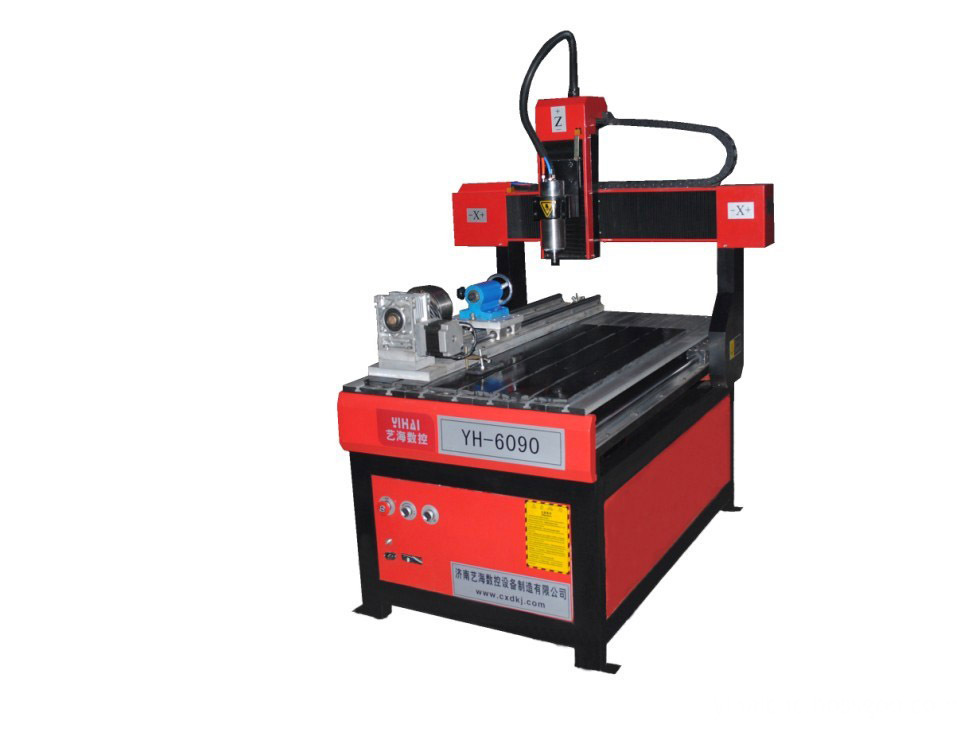

1) Standard Configuration of 6090 Model:
- CE standard, 600*900*150mm effective working area;
- Cast steel square tube structure;
- Ball screw transmission;
- Mach3 control system;
- Stepper motor;
- 1.5KW water cooled spindle;
- Leadshine driver;
- Linear orbit, including Type3 software
2) Technical Parameters
|
Model NO. |
YH-6090 CNC Router |
|
Table Size |
740mm*1140mm |
|
X Y Z Traveling Area |
600mm*900mm*200mm |
|
Table Structure |
Aluminum T-Slot |
|
Spindle Power |
1.5KW Water Cooling |
|
Max. Spindle Speed |
24000r/min |
|
Max. Traveling Speed |
7200mm/min |
|
Max. Working Speed |
5000mm/min |
|
Processing Accuracy |
±0.025mm |
|
Reposition Accuracy |
≤0.025mm |
|
Driving System |
Stepper Motor |
|
Command Language |
HPGL, G Code |
|
Operation System |
NCSTUDIO(Weihong Card) |
|
Working Voltage |
AC220V, 50Hz |
|
Net Weight/Gross Weight |
250 KGS/ 300KGS |
|
Package Dimension |
1400mm*1100mm*1480 mm |
Kindly Tips:
All the parts of machine can do some changes to meet your requirements.
1.motor (step motor or servo motor optional)
2.spindle (air cooled or water-cooled optional )
3.guide rail (linear guide rail or square linear guide optional )
4.the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table,Normal table,Table moving)
Payment terms:
1 You can pay 30% by T/T(bank transfer) in advance ,when we finished the machine ready for shipping ,you pay the 70% left.
2 You can pay by Escrow by Alibaba
Delivery time:
7-12 working days.If we see the scanner of bank receipt /confirmation by email ,we will take into producing ,and ship it to you .
Our technical support and quality assurance as follows:
1.warranty:1 years
2.replace all accessories during the waranty period for free(except wearing parts and artificial damage)
3.Provide 24 th technology online support
