CNC Plasma Cutter CNC Plasma Cutting Machine

Basic Info

Model No.: 1530

Controlling Mode: CNC

Certification: ISO9001, CE

Customized: Customized

Condition: New

Applicable Material: Steel,aluminum,iron,titanium

Working Area: 1500*3000mm

Transmission: Gear Rack From Taiwan

Plasma Current: 63A 100A

Cooling Type: Water-cooling

Machine Body: Welded

Software Environmant: Windows 98/2000/XP

Control System: Start Control System DSP (USB)

Compatible CAD/CAM Softwares: Ucancam V8

Gross Weight: 1000kg

Additional Info

Packaging: plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,TIANJIN,SHANGHAI

Product Description

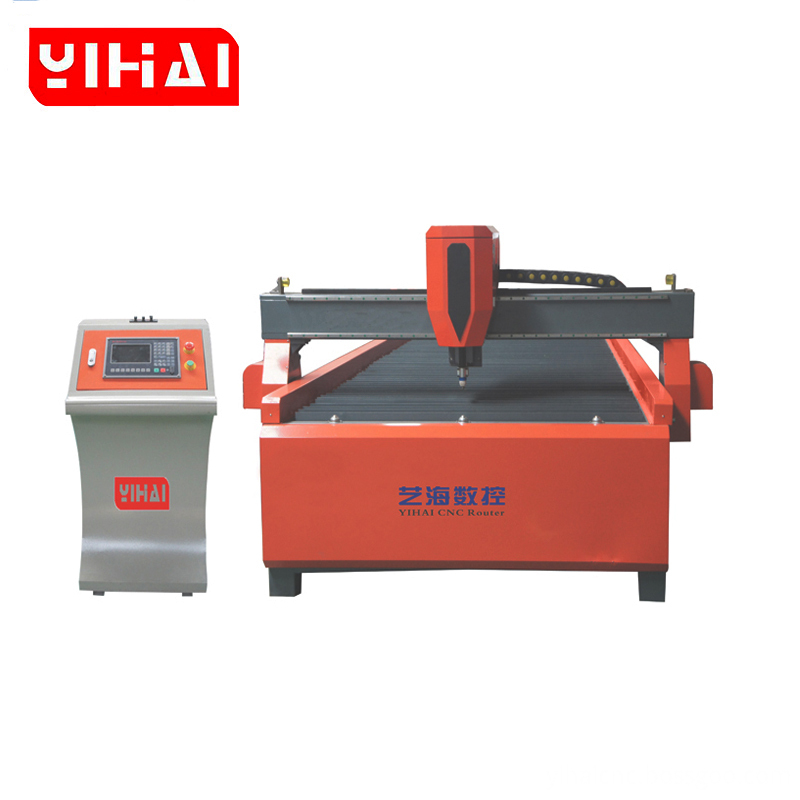

  USA brand CNC plasma cutter/ Plasma cutting machine YH1530

Descriptions

Plasma Cutting Machine consist of Power source with controls, Water Re-circulating system if required and a well designed Torch. The basic principle is that the arc formed between the electrodes and the work piece is constricted by a fine bore, copper nozzle. This increases the temperature and velocity of the plasma emitting from the nozzle. The temperature of the plasma is in excess of 20,000°C and the velocity can approach the speed of sound. When used for cutting, the plasma gas flow is increased so that the deeply penetrating plasma jet cuts through the material and molten material is removed in the efflux plasma.

Applications:

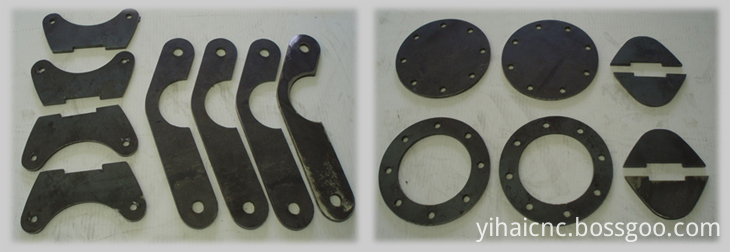

It can cut all electrically conductive metals like S.S, C.S, Copper, Aluminum, Inconel, Titanium, etc. Metals like Stainless Steel & Aluminum cannot be cut by Oxy - Acetylene as the metal reacts with oxygen during cutting to form oxides whose melting point is higher than the temperature of the Oxy-Acetylene flame. Plasma Arc temperature are in excess of 20,000oC with the high velocity flow which blast through all metals with a very clean finish at high speed.

• Cut expanded metal, painted or rusted plates
• Nonlinear cuts and beveling for edge preparation before welding
• Gouging can be performed just by changing the nozzle
• Hand held and mechanized options available
• Air plasma cutting up to 70 mm / Gas plasma cutting up to 150mm

Features:

• LGK inverter based with analog/digital controls & integrated HF arcing system that tremendously increases its efficiency and switching characteristic
• Low Power Consumption – Optimized design of ferrite core transformer with high quality CRGO (Cold Rolled Grain Oriented) laminations to ensure low power consumption at 100% duty cycle
• Excellent Power Factor – Power factor correction capacitor ensures Power Factor of 0.85 - 0.90% ensuring lowest power consumption
• Stepless Power Control – Power controlled in steps in high capacity machines for extended power saving
• Easy Arc Striking – High open circuit voltage to accommodate easy arc striking
• Safety against Voltage Fluctuation & Overload – Fully protected power source against voltage fluctuation & overload added with complete safety interlocking for torch protection against air and water failure
• Easy to Operate – Easy to operate and maintain torch head for operator's convenience
• High Cutting Capacity – Highly improved torch design offers higher cutting capacity at low power output
• Long Life of Consumables – Torch design guarantees long life of consumables viz. electrode and nozzle
• Dross Free Cuts – Almost vertical, dross free cuts with minimum kerfs width
• Long Cable Length – Standard Torch cable length of 7 meters with option to extend up to 30 meters
• Powder Coated Chassis & Panel – Robust design with powder coated chassis & panel ensures long life in site conditions also

Specification

Scope of supply includes:

• Power Source
• Hand or Machine Torch with 7.5 mtr cable
• Earthing Clamp with 7 mtr cable
• Air Filter with Regulator
• Box spanner
• Suitable Trolley for Machine mounting
• Consumable package
