fiber laser engraver for cutting Carbon steel plate

Basic Info

Model No.: YH-1825

Application: Woodwork Industry, Advertising Industry, Other

Cooling System: Water Cooling

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Application Material: Carbon Steel,Stainless Steel,Galvanized Steel,brass,aluminum,

Application Area: Kitchen Wares,Advertising Signs,decoratiion, Dtc.

X,Y,Z Axis Working Area (mm): 3000*1500*120

Working Table Maximum Load: 700Kgs

X,Y,Z Axis Servo And Motor: Delta Or SCHNEIDER(European Standard) 4Sets

X,Y Axis Reducer: MOTOVARI

Maximum Acceleration: 0.8G

Electrical Components: SCHNEIDER

CNC System: Friendess

Additional Info

Packaging: In bulk loading 1*20GP

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO

Product Description

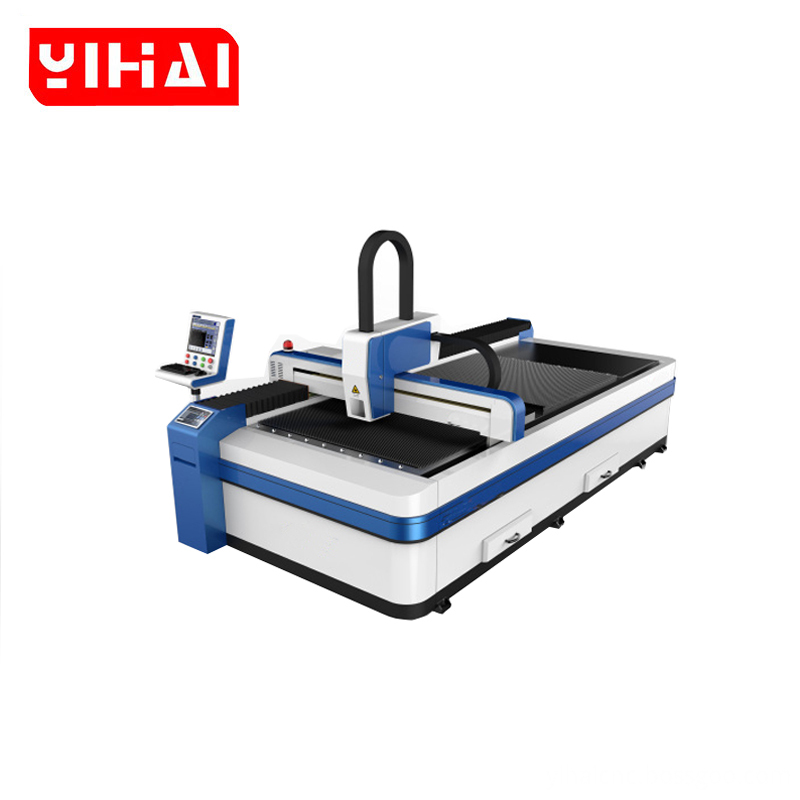

1325 fiber laser engraver for cutting Carbon steel plate and stainless steel plate in China

Product description:

   YH-1325L is a most valuable entry-level fiber cutting machine, using the self-developed machine gantry structure, the whole machine use highstrength seamless steel for a better rigidity, high temperature annealing machine, rack for 20 years without deformation, accompanied by 200w high quality domestic fiber optic devices comes with excellent beam to make that the cutting lines more sophisticated and more more efficiently. The rail screw is imported highprecision brand, also additionally equipped with a dust removal device, drag feeding device, high temperature alarm and industrial cooling devices.

Product features:

1. Moved crossbeam with imported high precision ball screw and rail guide transmission makes the stable riving and high precision work.

2. Machine frame, crossbeam and worktable adopt integral welding, in accordance with the standard large machine, to stress annealing after rough machining, and then vibration aging treatment, can completely liminate the welding stress and processing. Can also keep high-strength, high precision, and also keep the 20 years of normal use of deformation

3. X and Y axis equip with Japan servo motor, high precision, high speed, large torque, large inertiafor a steady and durable work.

4. Use MPC6595 based on Windows operating system can perfect match the Laser cut 6.1, collect he function of read file, simple design, output, and processing control, a set of software which can complete the layout to the machining process, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.

Technical parameters:

Working size: (L*W)2500mm×1300mm

Laser tube:300W Raycus fiber laser tube

X,Y,Z axis range:1325mm/100mm

The thickness of the material: 0.1-3mm(Depending on the material)

Maximum cutting thickness: 3mm

Position accuracy: 0.03mm

Maximum moving speed: 20m/min

Net weight: 1000kg

Operating temperature: 0℃-40℃

Control system: MPC6595

Workbench maximum load: 100kg

Drive type of X, Y axis: imported servo drive( Panasonic, Japan)

Moving mode: imported TBI rolling ball screw

Machine size(L*W*H): 3800*1850*1300mm

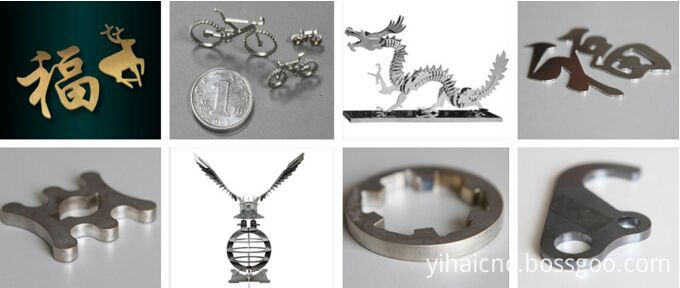

Application industry:

Metal cutting, electrical switch manufacturing, elevator manufacturing, household appliances,kitchen utensils and appliances manufacturing, tool processing, and various of machinery manufacturing processing industry.Used to cut a variety of thin sheet metal professional, high quality cutting 0.1 ~ 2 mm carbon steel plate, stainless steel plate, can also be cutting galvanized sheet, electrolytic plate and other metal materials.
