| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: 1325
Type: Engraving Router
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: CE, ISO, SGS, FDA
Customized: Customized
Condition: New
Color: Customized
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Additional Info
Packaging: wooden packing
Brand: YIHAI
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 200
Port: QINGDAO
Product Description

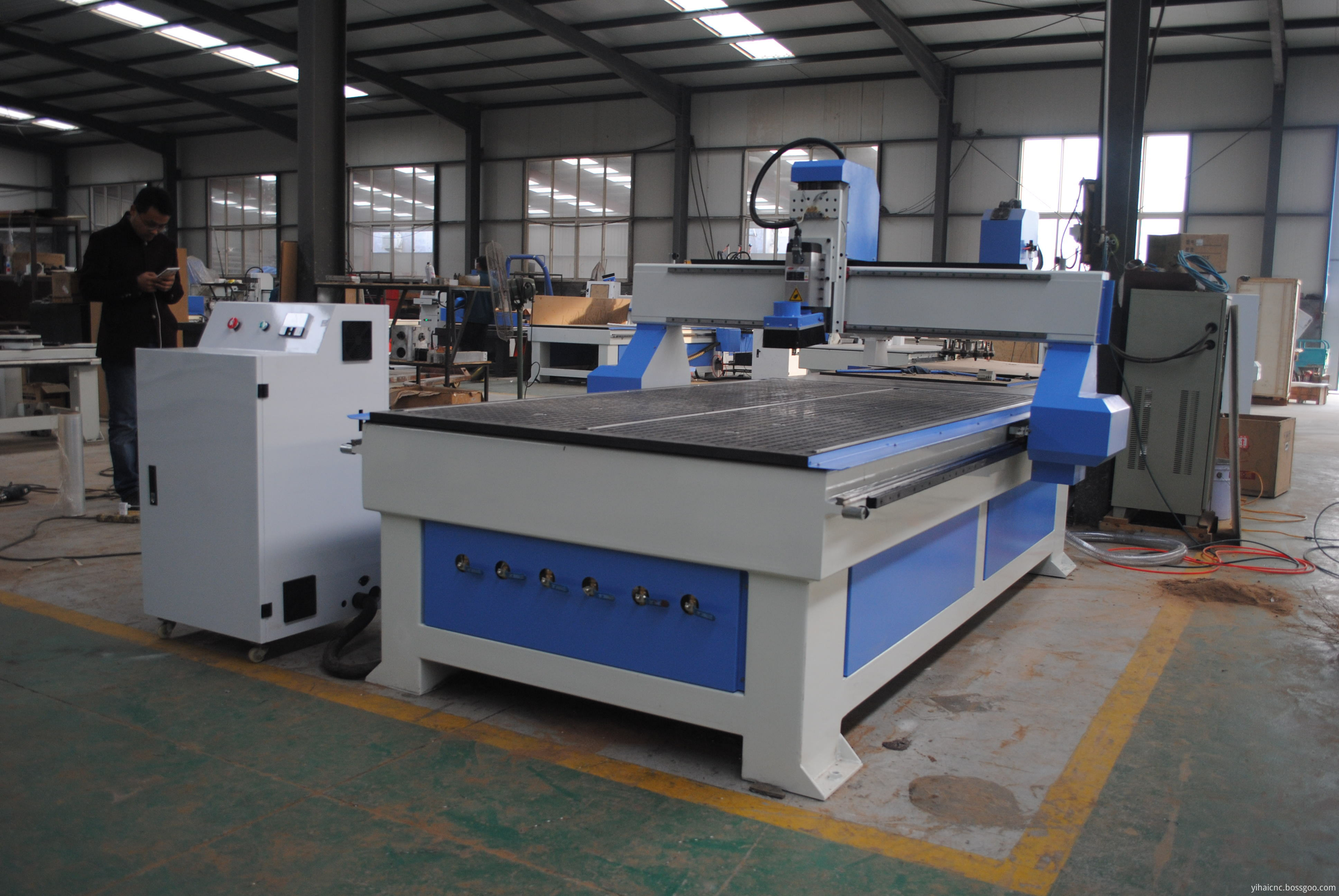

YH1325 new products China cnc wood router / cnc router wood / wood cnc router
Introduction of CNC Engraving Machine Wood CNC Router YH1325:
1. It is designed for processing metalloid materials.
2.It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminum, brass and so on.
3. It equips steel drag chain, air cooling spindle, big stepper motor, Taiwan PMI linear rails and ball screw to ensure the high accuracy.
4. Application:
1) Furniture Industry: doors, cabinets, tables, chairs
2) Advertising Industry: signage, logo, badges, display board, meeting sign board, billboard
3) Artwork and Decoration Industry: wood crafts, gift box, jewelry box.
4) Electronic Industry: circuit board, insulation material
5) Music Industry: musical instruments, loudspeaker box
6) Soft Metal: aluminum, brass
Parameter of CNC Engraving Machine Wood CNC Router YH1325:
|
Number |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300mmx2500mmx200mm |
|
2 |
Table Size |
1450mm×2940mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
5 |
Table Surface |
Vacuum table (Option: T-slot Table) |
|
6 |
Frame |
Welded Structure |
|
7 |
X, Y Structure |
Rack and Pinion Drive,Taiwan PMI Rail Linear Bearings |
|
8 |
Z Structure |
Taiwan PMI Rail Linear Bearings and TBI Ball Screw |
|
9 |
Max. Power Consumption |
3KW(Without Spindle) |
|
10 |
Max. Rapid Travel Rate |
33000mm/min |
|
11 |
Max. Working Speed |
25000mm/min |
|
12 |
Spindle Power |
3.0/4.5/6KW |
|
13 |
Spindle Speed |
0-18000RPM |
|
14 |
Drive Motors |
Stepper System (option:Servo motor) |
|
15 |
Working Voltage |
AC380V/50/60Hz,3Phs (Option: 220V) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
DSP System (Options: Ncstudio/Syntec Software) |
|
18 |
Computer Interface |
USB |
|
19 |
Flash Memory |
128M(U Disk) |
|
20 |
Collet |
ER25/ER32 |
|
21 |
X,Y Resolution |
<0.03mm |
|
22 |
Software Compatibility |
Type3 Software(Option: Artcam Software) |
|
23 |
Running Environment Temperature |
0 - 45 Centigrade |
|
24 |
Relative Humidity |
30% - 75% |
|
25 |
Packing Size |
3300mmX2100mmX2300mm |
|
26 |
N.W. |
1750KG |
|
27 |
G.W. |
1980KG |
